Safety information
{{% notice warning %}} Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service or maintain it. The following special messages may appear throughout this bulletin or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure. {{% /notice %}}
Do not power the device from USB and Main power connector simultaneously that can damage the device permanently.
Overview

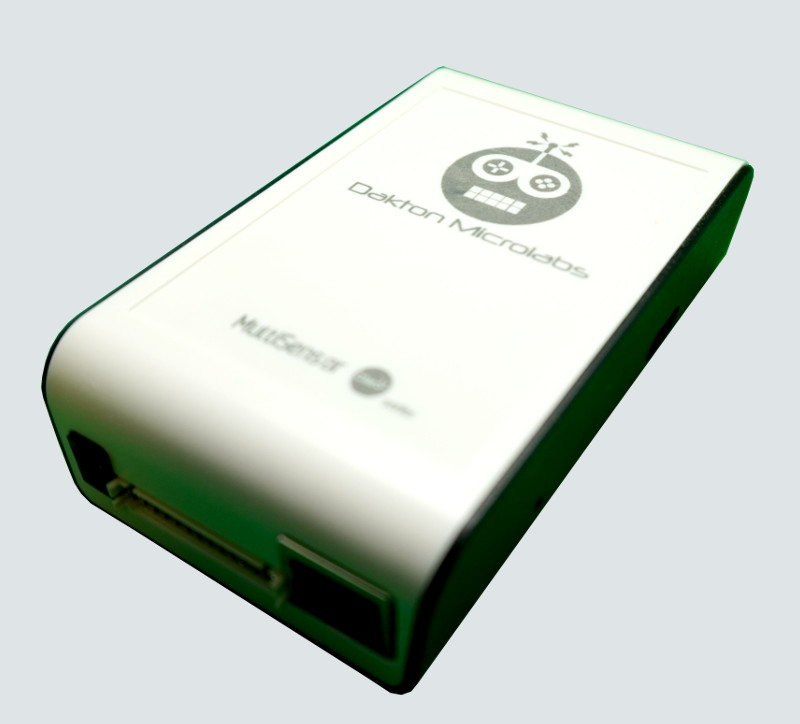

The Dakton Multisensor V2 is a versatile device for site monitoring.
Device Features
- Wifi 2.4G Hz.
- Ethernet 10/100.
- Web Interface.
- 16 input zones (dry contacts).
- MODBUS RS485 support.
- 2x Shunt Reading Inputs.
- Temperature OneWire Bus.
- 2x Voltage input Measurement (up to 60VDC).
- Build-in RTC.
- USB type C.
- Low power consumption.
- * External antenna.
- * Lora/LoraWan.
(*) Optional
Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 9-28VDC (48VDC optional) |
| Antenna Type | Build-in or *External |
| Operating Humidity | ＜90%RH |
| Operating Temperature | -20°C ～ 55°C |
| Storage Temperature | -10°C ～ 70°C |
| Max. Ouput Current | 120mA at 12V |
| Configuration | PC (with cable) or Mobile (with Conf adapter) |

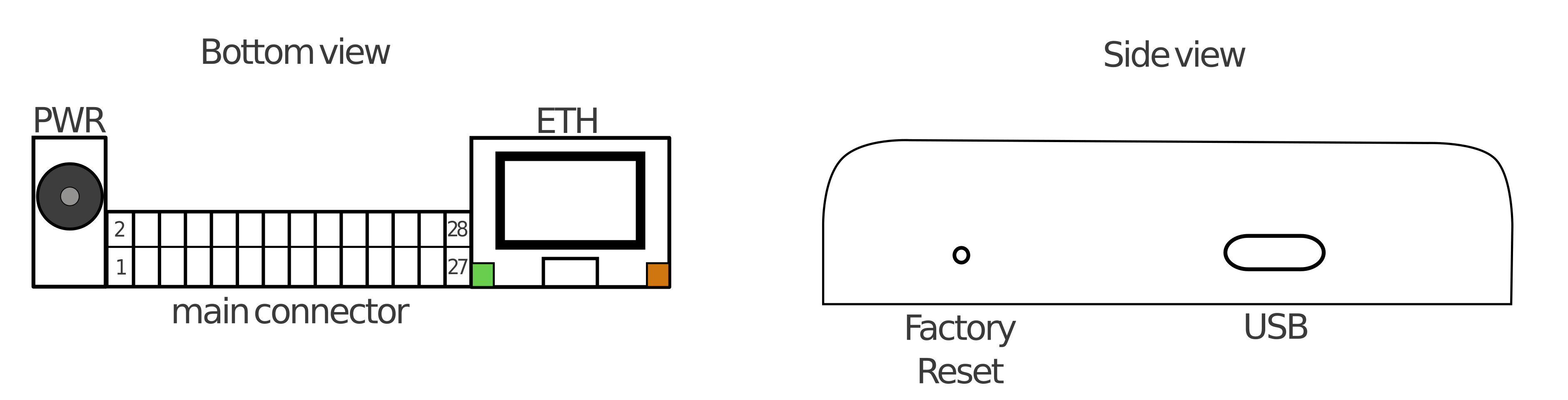

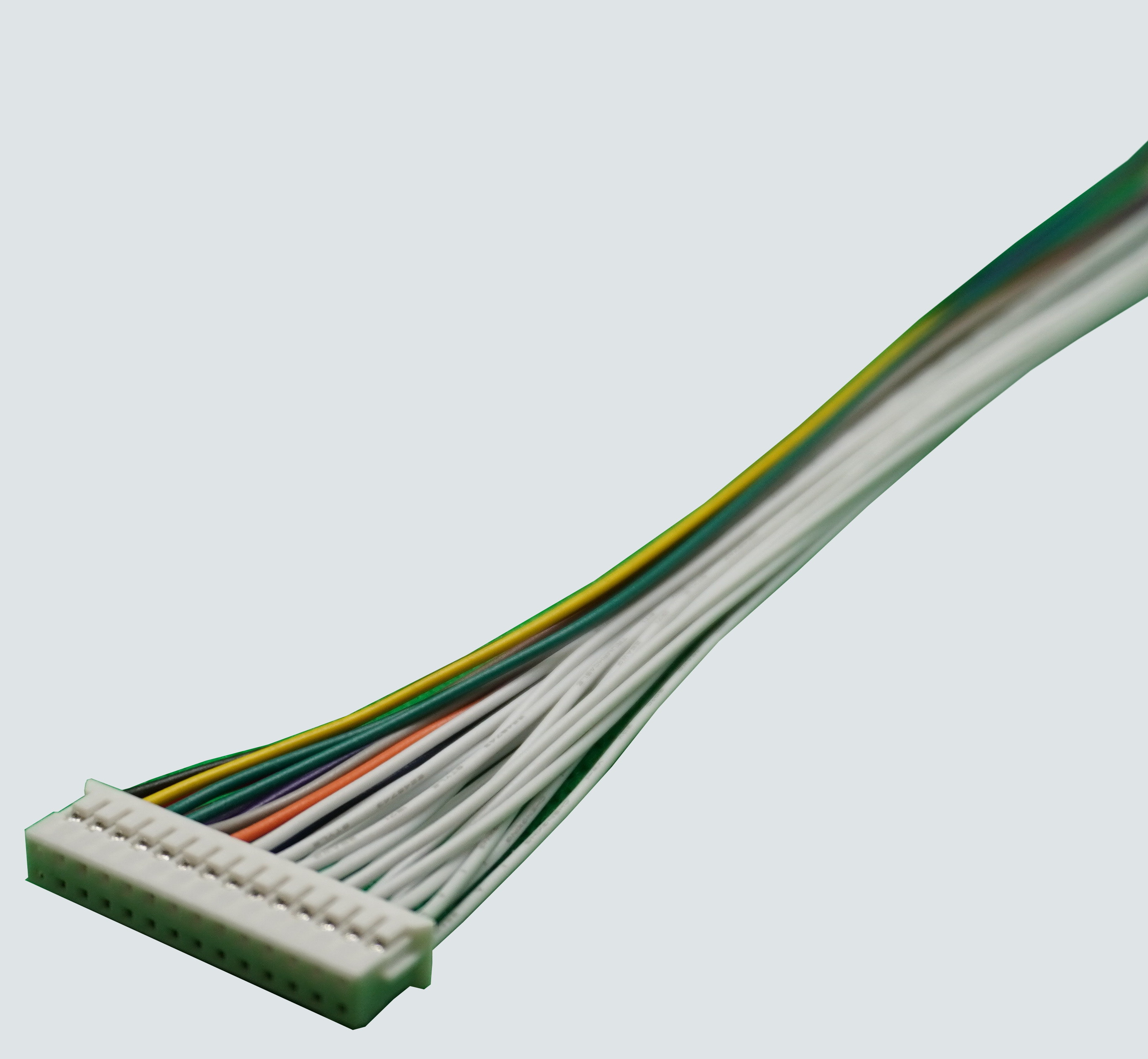

Wiring Specs
{{%expand "Open PIN TABLE" %}}
| PIN | Description |
|---|---|
| 1 | Voltage input/output |
| 2 | Ground |
| 3 | RS485 B |
| 4 | RS485 A |
| 5 | Shunt A (-) |
| 6 | Shunt A (+) |
| 7 | Shunt B (-) |
| 8 | Shunt B (+) |
| 9 | Voltage B |
| 10 | Voltage A |
| 11 | +5DC Output |
| 12 | Temperature Bus |
| 13 | Zone 2 |
| 14 | Zone 1 |
| 15 | Zone 4 |
| 16 | Zone 3 |
| 17 | Zone 6 |
| 18 | Zone 5 |
| 19 | Zone 8 |
| 20 | Zone 7 |
| 21 | Zone 10 |
| 22 | Zone 9 |
| 23 | Zone 12 |
| 24 | Zone 11 |
| 25 | Zone 14 |
| 26 | Zone 13 |
| 27 | Zone 16 |
| 28 | Zone 15 |
{{% /expand%}}
Configuration & Upgrade Inteface
Upgrade with Firmware file
PC software WonkaTool:
For upgrade via Firmware file you will need the PC software WonkaTool
Web interface

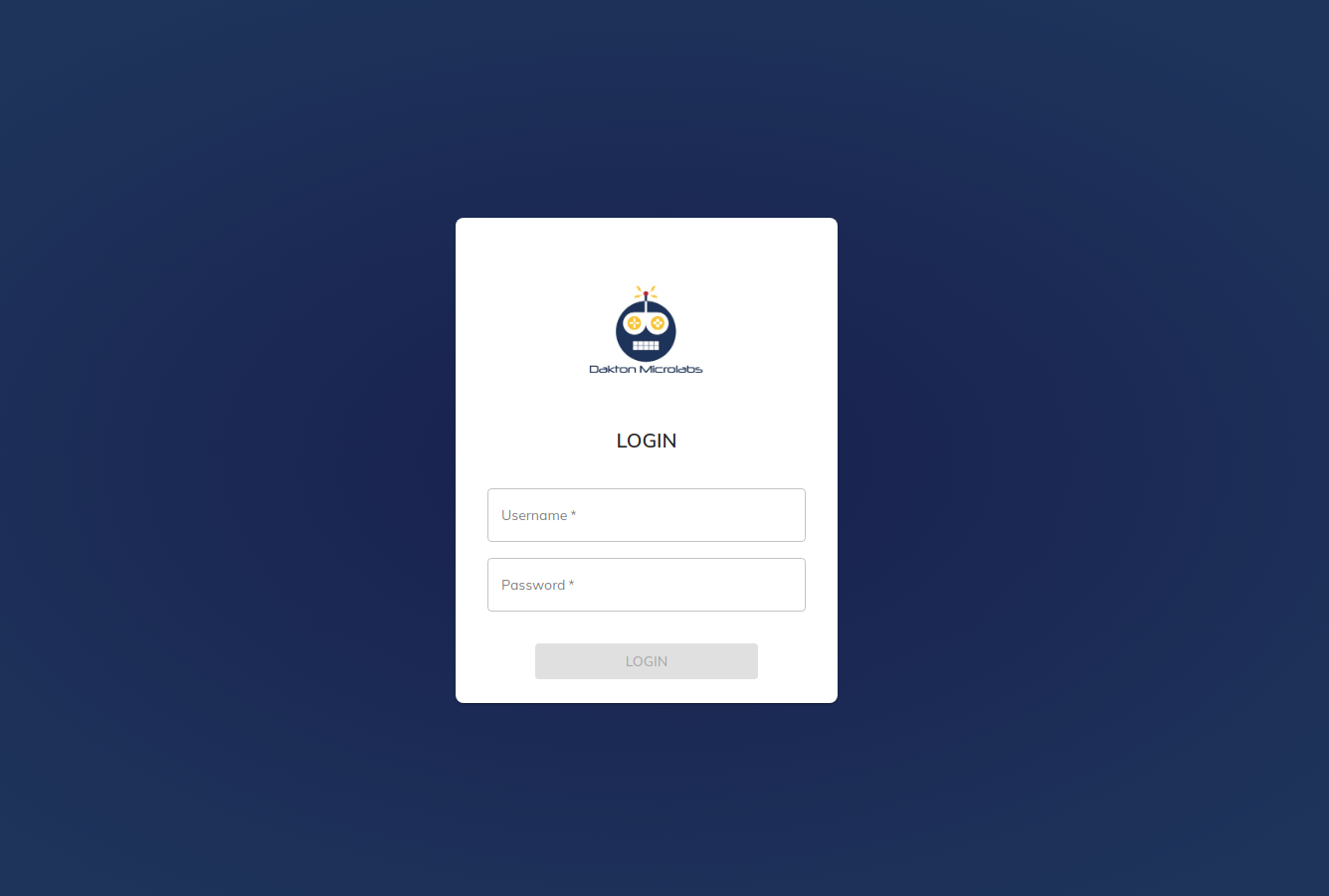

The Web interface is reachable by default as Dakton_SERIALNUMBER Wifi hotspot. This Web can be used with desktop or cellular browsers.
After the hotspot is connected you can access to the Web inteface with your browser at:
| Defaults | |
|---|---|
| Web address | http://192.168.4.1 |
| Username | admin |
| Password | dakton1234 |
Download Firmware
Latest: Download
