DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
+ Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E in the USA, CSA Z462 or applicable local standards. + Turn off all power supplying this device and the equipment in which it is installed before working on the device or equipment. + Do not connect/use the USB port with AC lines connected, HAZARD OF ELECTRIC SHOCK + Always use a properly rated voltage sensing device to confirm that all power is off. + Follow guidelines in the Wiring section of the related Installation Sheet. + Do not exceed the device’s ratings for maximum limits. + Use cables with proper insulation according your target voltages. {{% notice warning %}} Failure to follow these instructions will result in death or serious injury. {{% /notice %}} ### Overview The Dakton energy and power quality meters help meet the needs of your energy monitoring and cost management applications. ### Device Features + Power quality readings (THD) (total harmonic distortion of all phases. + Line Frequency. + Active (kW), reactive (kVAR) and apparent (kVA) power. + Active (Wh) and Reactive (VARh) energy. + Power factor. + Voltage and current. + Configuration modes: 1P2W, 3P3W, 3P4W. + Web Interface. + Wifi 802.11 b/g/n. + Lora and LoraWan optionals. + Local data storage. + #### Measurment accuracy | Parameter | Description | Accuracy | | --------- | ----------- | -------- | | (V) | Voltage | Class 0.5 | | (A) | Current | Class 0.5 | | (f) | Frequency | Class 0.2 | | (Pf) | Power Factor | Class 1 | | (W) | Active power | Class 1 | | (VAr) | Reactive power | Class 1 | | (VA) | Apparent power | Class 1 | | (Wh) | Active energy | Class 1 | | (VARh) | Reactive energy | Class 1 | | (THD) | Total harmonic distortion | Class 1 | #### Maximum limits Do not exceed the device’s ratings for maximum limits. | Parameter | Limit (Max) | | --------- | ----- | | Input Voltage (pin 1-4) | 500VAC (50/60Hz) | | Supply voltage (pin 5-6) | 260VAC (50/60Hz) | | Current (each coil) | 8kA (_*for greater Current range please contact your technical support_)| ### Wiring Examples   ### Web interface The Web interface is reachable by default as **Dakton_SERIALNUMBER** Wifi hotspot. This Web can be used with desktop or cellular browsers.After the hotspot is connected you can access to the Web inteface with your browser at:

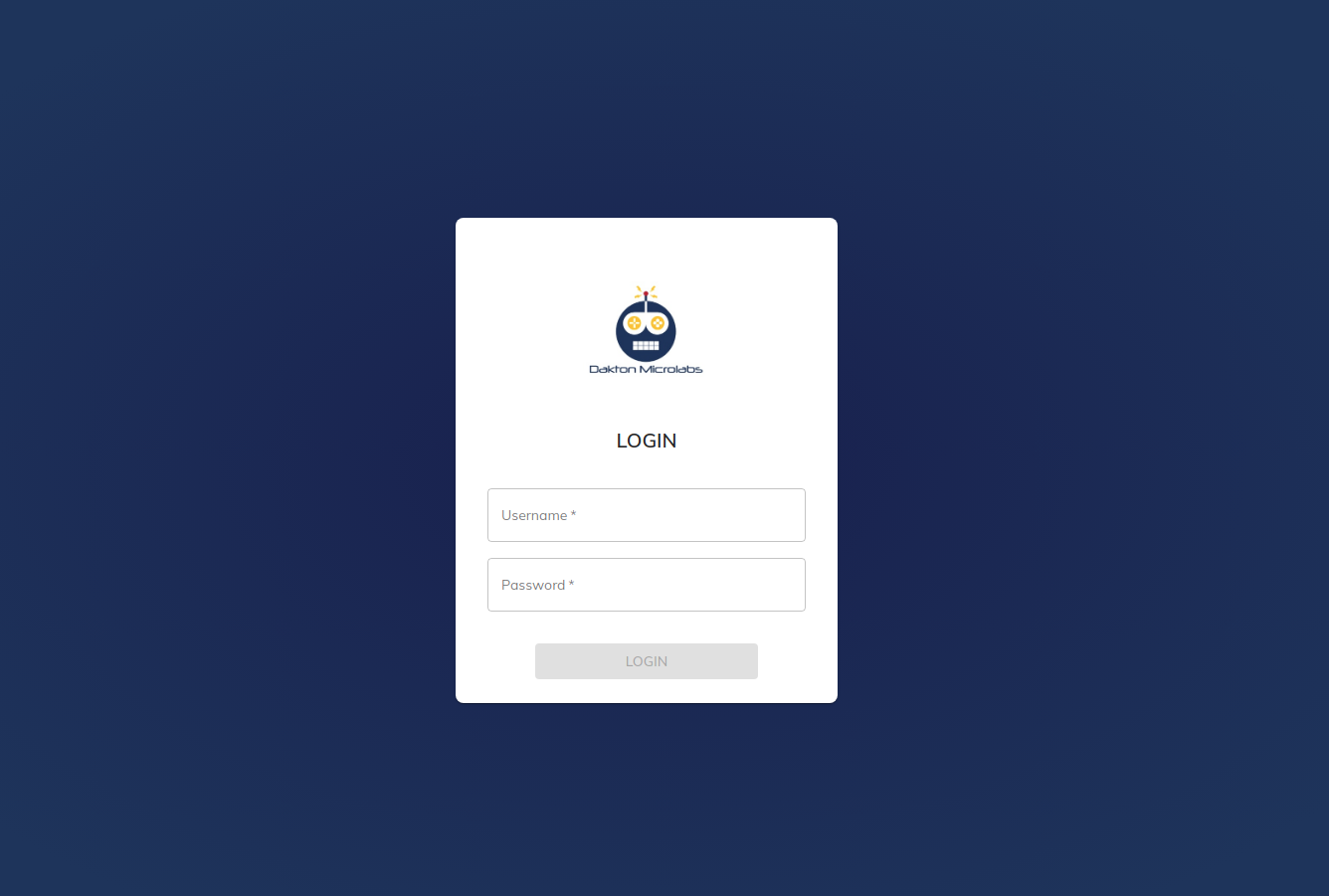

| Defaults | | | ----------- | -----------| | Web address | ```http://192.168.4.1``` | | Username | ```admin``` | | Password | ```dakton1234``` |  ### Download Firmware ~~Latest~~
